Place of Origin : China

MOQ : 1

Price : USD10/piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 5-20work days

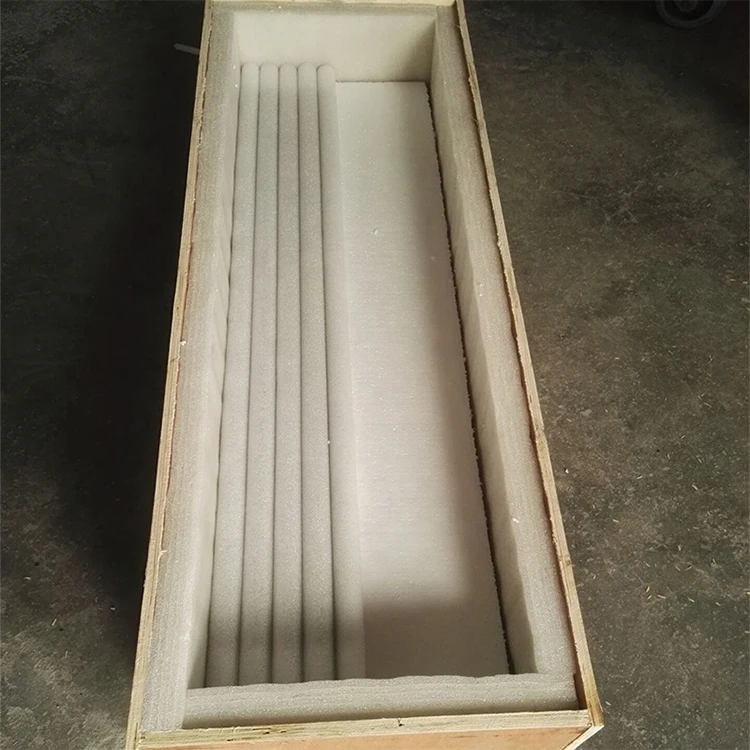

Packaging Details : Strong wooden box for Global shipping

Contact Now

Straight sic silicone carbide heating rods with cold zone and hotzone silicon carbide element

FEATURES

¯¯¯¯¯¯¯¯¯¯¯¯¯¯

1. Withstands as high as 1500 (surface temperature).
2. Generates high heat output per unit surface area, approximately 5-10 times the output of Nichrome wire.
3. High strength and excellent shock resistance.
4. Heat source is free of noise and air pollution.

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element

Item	RSiC	NSiC	SiSiC	Si3N4-SiC
Bulk Density(g/cm3)	2.60-2.74	2.75-2.82	>3.02	2.68
Porosity (%)	15	10-12	<0.1	<16
Compression Strength(MPa)	≥600	600-700	--	180
Bending Strength(MPa)	90-100(20℃)	--	250(20℃)	≥45(20℃)
Bending Strength(MPa)	100-120(1100℃)	160-180(1100℃)	280(1200℃)	≥50(1200℃)
Young’s Modulus(GPa)	280(20℃)	220-260	--	≥16(1200℃)
Thermal Conductivity(W/MK)	26(1200℃)	15(1200℃)	45(1200℃)	--
Thermal Expansion(20-1000 ℃)	4.8×10-6	5.099×10-6	4.5×10-6	≤4.7×10-6
Max. Working Temperature(℃)	1650	1500	1380	1500
PH Resistance	1-14	--	Excellent	--
Moh’s Scale of Thermal Expansion	--	--	13	--
Si3N4 (%)	0	20-40	--	≥22
a-SiC(%)	98.5	60-80	--	≥75
